Articulated beacons
With a submerged float of a volume of 0.8 to 10m3, GISMAN articulated beacons benefit of a swing radius close to 0. This type of equipment requests low maintenance. Each articulated beacon is subject to a specific study according to the conditions of the installation site (up to 50m depth).
- Swing radius close to 0
- Positioning with great accuracy
- Low maintenance (no mooring chain)
- Insensitive to roll (but possibility of slight tilting under the action of strong winds and currents)
- A metal tube made of watertight sections
assembled by bolted flanges, and fixed to a
mooring by a specific shackle - Sub-surface polyethylene float rotomolded and filled with PU
- Cathodic protection against corrosion
- 360° ladder rungs for easy access
The articulated beacon does not require any watch swing radius, allowing for very accurate marking.
Since it is not subject to the same stability constraints as a buoy, the focal plane of a floating beacon can be readily adjusted to meet marking requirements.
With no mooring line and offering very easy access for maintenance technicians, it requires virtually no maintenance.
These products may interest you
2 to 6 NM+
GSC-5-SS or MS
Self-contained lantern
2 chassis size configurations
High autonomy
GISMAN Bluetooth® application
Proximity
GBP-1800 - Ø 1.80 m
Full PE buoy
Virgin polyethylene float, dyed in mass and UV stabilised, EPS foaming
Internal stainless steel reinforcement system
High visibility polyethylene spar
Coastal
GBM-2000 - Ø 2.00 m
Hybrid PE & Steel buoy
2 segments of float in virgin polyethylene, dyed in mass and UV stabilised, EPS foaming
Central structure in galvanised steel
High visibility aluminum or polyethylene spar
Discover some projects with articulated beacons

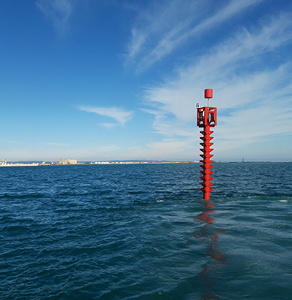

FRANCE
2023
EUROPE

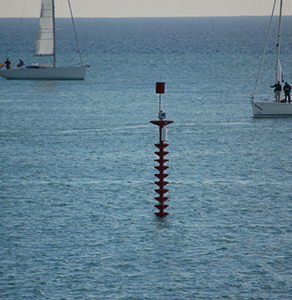

2015

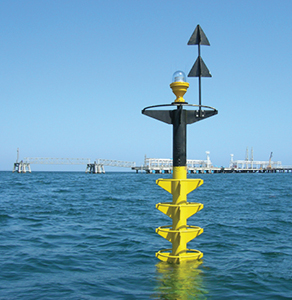

AFRICA
